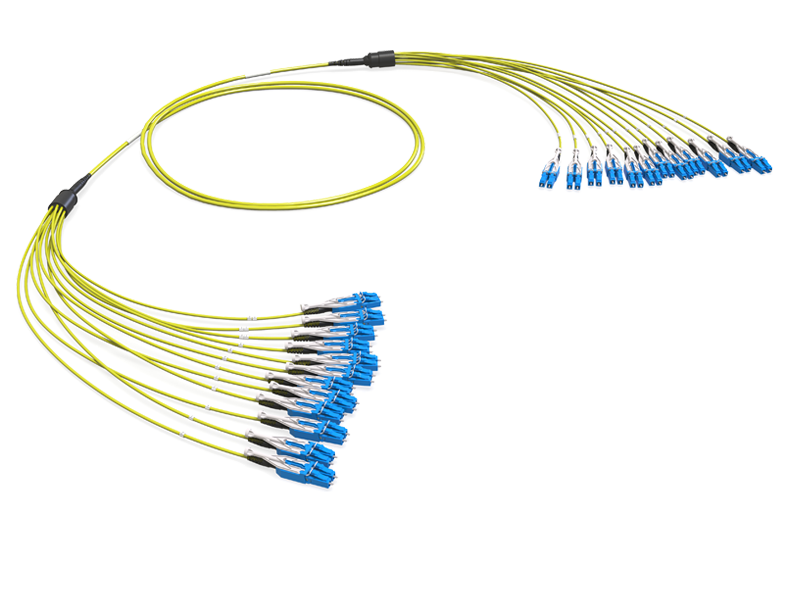

Breakout Link LCHD-UPC/LCHD-UPC Uniboot Duplex cable assembly, 24F SM9/125 OS2
FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH
Specification
| Fiber quantity | 24 fibers |
| Cable design | Round dielectric cable |
| Cable Outer Diameter, mm | 3,8 mm |
| Outer Jacket Material | LSZH |
| Fiber type | SM 9/125 OS2 |
| Connector, Side A | LCHD Uniboot Duplex |
| Connector, Side B | LCHD Uniboot Duplex |
| Polarity | Type A |
| Loss Category | SM, Ultra Low Loss |
Related Products
Documents
Articles
| 82229031 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 10 m | |
| 82229032 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 15 m | |
| 82229033 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 20 m | |
| 82229034 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 25 m | |
| 82229035 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 30 m | |
| 82229036 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 35 m | |
| 82229037 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 40 m | |
| 82229038 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 45 m | |
| 82229039 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 50 m | |
| 82229040 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 55 m | |
| 82229041 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 60 m | |
| 82229042 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 70 m | |
| 82229043 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 80 m | |
| 82229044 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 90 m | |
| 82229045 | FO Breakout Assembly 24 x 09/125 OS2, LCHD-UPC/LCHD-UPC, type А, LSZH, 100 m |
